CG-962

Color Pattern Generators CG-962

---

Outline

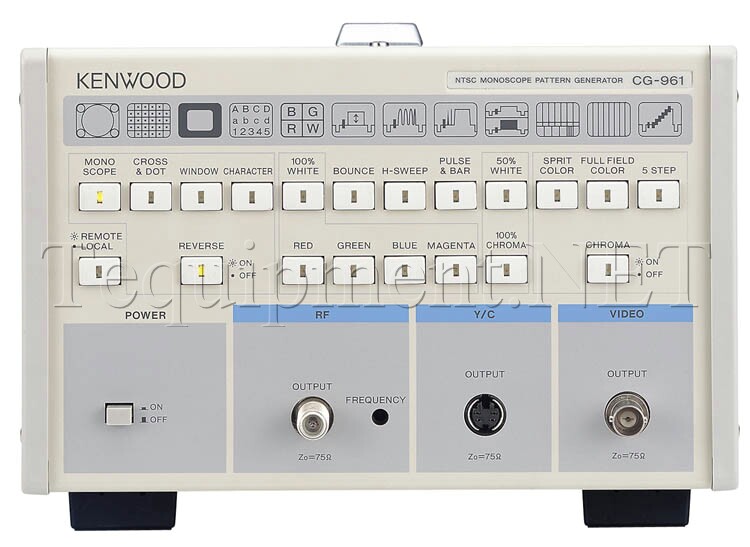

The CG-961 (NTSC) and CG-962 (PAL) are video signal generators??A??i especially suitable to the needs of the audio/visual area which requires a large-sized screen and higher resolutions. The test signal provides a total of 23 types of patterns including a monoscope pattern all of which are generated by the 8-bit digital data. Furthermore??A??i they are equipped with not only the monoscope pattern or color-bar signal??A??i but also other special patterns such as pulse & bar signal??A??ia 5-step modulation staircase signal??A??i H sweep signal and bounce signal??A??i etc. to be used to evaluate the video circuit characteristics -- ready to be used in a wide variety of applications.

Features

●Monoscope Pattern The monoscope pattern provides an horizontal resolution of 1,000 TV lines. It can be used for evaluation of a high-resolution TV monitor. ●Y/C-Separated Output supplied as standard In addition to the composite video output, S-Video output with luminance/chrominance separated terminals are also provided as standard. ●Amplitude accuracy of ± 3%, Phase accuracy of 3° Since the digital data is generated in 8 bits, it features extremely high accuracy. The resulting amplitude accuracy is maintained to within ± 3% or 10 mV, and the phase accuracy is maintained within ± 3°. ●Video noise evaluation signal The 50% D-white signal (luminance noise) or 100% chroma signal (chroma noise) are also provided for evaluation of the video noise. ●Bounce signal The bounce signal to be used for evaluation of the DC clamp is also supplied. It alternates between white and black every second. ●Enriched built-in patterns An H Sweep signal for evaluation of frequency response, and a 5-step modulated staircase wave for DG/DP measurement are also provided. The pulse & bar signal for evaluation of the quality of circuit characteristics. At the same time, two types of color-bar signals - full-field and split - are also built in. ●Setup 0% In answer to market trends, the CG-961 (NTSC) is equipped with the setup 75% design. ●RF Output As an RF output, 1 kHz audio signal is also added. The frequency can be varied from the front panel control. ●EEPROM backup EEPROM is employed for backup of the panel setting status. You don't have to worry about exhaustion of the backup battery. ●GP-IB option (Factory option) As a factory set option, the CG-961/962 can be installed the GP-IB interface, for accommodating an automated system. ●SPECIFICATIONS SPECIFICATIONS Model CG-961 CG-962 Patterns Pattern type Monoscope Horizontal resolution of 1?000 TV lines Cross & Dot Cross hatch: 20 × 16? Dot: 19 × 15 Window 0.5 × 0.5 Characters 94 × 24 characters or 47 × 24 characters Raster 100% white? 50% white? 100% chroma? R? G? B? Mg Bounce Alternates between white and black in once per second (approx.) H Sweep 250 kHz - 5 MHz? with marker 250 kHz - 6 MHz? with marker Pulse & Bar 12.5T modulation pulse? 2T pulse? Bar Split Color Bar Conforming SMPTE Dividing rate same as SMPTE Full-field Color Bar Color bar in brightness order 5-Step Chroma on/OFF selectable Reverse Negative inversion of Mono-Scope? Cross & Dot? Wind? Characters Chroma ON/OFF selectable for Color Bar? 5-Step Video Output: Y/C Output Output Level 1 Vp-p± 3% (Sync tip -- 100% white)? Color saturation 75%? Setup 0% Output Accuracy ± 3% or within 10 mV? ± 3° Output Impedance 75 &Omega ± 10% Sub-Carrier Frequency 3.579545 MHz ± 100 Hz 4.433619 MHz ± 100 Hz Horizontal Scanning Frequency 15.734 kHz 15.625 kHz Vertical Scanning Frequency 59.94 Hz interlaced 50.00 Hz interlaced RF Output Output Level  60 dBμ or more (75&Omega loaded) Frequency Variable Range 45 MHz - 104 MHz 40 MHz - 104 MHz Audio Signal Approx. 1 kHz Audio Carrier Frequency 4.5 MHz  5.5 MHz Power Requirements Power Voltage AC 90 V - 250 V? 50/60 Hz Power Consumption Approx. 15 W Environmental Conditions Operate Temperature Range 0 - 40°C? RH 85% or less Specification of Guaranteed Temperature Range 10 - 35°C? RH 85% or less Others Dimensions 212 (W) × 133 (H) × 272 (D) mm Weight Approx. 3.8 kg Option GP-IB : Factory option Video output signal level CG-961   75% White Yellow Cyan Green Magenta Red Blue -I 100%White Q Burst Black Synced signal level Luminance component (mVp-p) 536 477 375 316 220 161 59 0 714 0 0 0 286 Chroma level (mVp-p) - 480  681  636  636  681  480  286  -  286  286  -  - Chroma phase (deg)° - 167  283  241  61  103  347  303  -  33  180  -  -  CG-962   75% White Yellow Cyan Green Magenta Red Blue U 100%White V Burst Black Synced signal level Luminance component (mVp-p) 525  465  368  308  217  157  60  0  700  0 0 0 300 Chroma level (mVp-p)  - 470  664  620  620  664  470  300  - 300  300  - - Chroma phase (deg) V - 167  283  241  61  103  347  0  - 90 135 - - -V - 193 77 119 299 257 13 0 - 270 225 - -
