CG-951

Color Pattern Generators CG-951

---

Outline

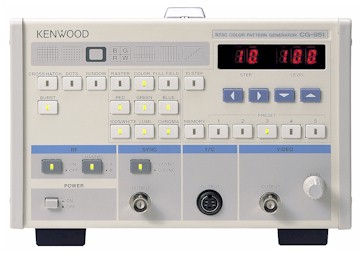

The CG-951 (NTSC)/CG-952(PAL) are color pattern generator incorporating a 10-step staircase signal generator featuring variation of the luminance level of each step??A??i in addition to the generator of color bar??A??i crosshatch??A??i raster and other patterns required for adjustments and inspections of video equipment and color TV. Based on the CG-930 Series of color pattern generators highly approved with excellent cost efficiency??A??i the CG-951/CG-952 are provided with additional new functions such as a variable 10-step staircase signal generator??A??i RGB output and Y/C separate outputs. With its improved resolution??A??i the CG-951/CG-952 are also compatible with a wide range of modified patterns.

Features

●Variable 10-Step Staircase Generator Making For Easy Adjustment of the Gamma-Corrector Circuit of LCD Displays With both CRT and LED, the display brightness is not linearly proportional with the input signal but there is a curve for each type of display. Since the current video signal has been corrected for the curve of CRT, the color hue may be altered slightly if it is displayed on a LCD without correction. To prevent this, a very complicated adjustment using color bar signals or staircase signals with equal level intervals has been required for the gamma corrector- circuit of LCD displays. However, the CG-950 series incorporates a variable 10-step staircase signal generator which can simulate the curves. By applying a staircase signal with simulated curve, the output from the correction circuit of LCD displays can be made linear, facilitating the adjustment and reducing the adjustment process as well. The variable 10-step staircase generator can be preset to output up to 5 kinds of staircase signals. ●RGB Output and Y/C Separate Outputs Provided as Standard In Addition to Composite Video Output In addition to the composite video output for video equipment and a large variety of monitor equipment, an RGB output and Y/C separate outputs are provided as standard. An RF output can also be added optionally. ●Burst Signal on/OFF with Any Pattern To facilitate checking of the color killer circuitry, the burst signal on/OFF function can be used with all patterns. ●Selection of 9 Raster Patterns The raster patterns for use in the purity adjustment allow selection of intermediate colors (yellow, cyan, magenta) by combining R, G and B. As a result, 9 kinds of outputs including 100% white, 75% white, yellow, cyan, green, magenta, red, blue and black are available. The luminance and chrominance signals can additionally be switched on/OFF. ●Two Color Bar Patterns Split color bars (SMPTE) and full-field color bars are built in. The full-field color bars are available in 8 colors including black (100% white, 75% white, yellow, cyan, green, magenta, red, blur or black). In addition to the luminance and chrominance on/OFF switching, R, G and B can also be switched on/OFF independently. ●Setup 0% While conventional NTSC equipment used 7.5% setup level, a 0% setup level which is becoming the new mainstream is provided. ●EEPROM Memory The panel setups and the 10-step staircase setups are stored in EEPROM so that they will not be cleared even after the power is turned off. As the EEPROM does not need a battery for back-up, there is no need to worry about battery exhaustion. ●Composite Sync and Vertical Sync Outputs Provided as Standard The sync signal output can be switched to the composite sync and vertical sync, which is convenient for waveform observation on an oscilloscope. ●Example of Modified Patterns ●Horizontal color bars.●10-Step MOD. ●Oblique color bars. ●Circle .●Checkers.●Center-cross.●Scroll.* Please consult us for the modification costs. ●SPECIFICATIONS SPECIFICATIONS Patterns Cross-hatch 20 (V) ×16 (H)? white on black background? dot on the center? corner marker on the top left of screen Dot 20(V) ×16(H)? white on black background? corner marker on the top left of screen. Window 0.5 ×0.5? white on black background. Raster 100% white? 75% white? yellow? cyan? green? magenta? red? blue? black. Color Split-field color bars x 7 colors. Full-field Full-field color bars in order of luminance x 8 colors. 10-step Full-field 10-step bars. Level resolution 100? up to 5 patterns can be preset. R/G/B Independent on/OFF of R? G and B in color signals. R G B COLOR OFF OFF OFF BLACK OFF OFF ON BLUE OFF ON OFF GREEN OFF ON ON CYAN ON OFF OFF RED ON OFF ON MAGENTA ON ON OFF YELLOW ON ON ON 75%WHITE LUMI ON/OFF of luminance component in color signals. CHROMA ON/OFF of chrominance component in color signals. 100% WHITE Switching of white part in raster and color-bar patterns between 100% white and 75% white. (White in IQW (UVW) part is fixed at 100%.) Burst ON/OFF of color burst component in all patterns. Video Output Output level CAL: 1.0 Vp-p (75Ω load) VAR: 0 to 1.5 Vp-p (75Ω load) Output impedance 75Ω Polarity Positive (Sync signals are negative.) S Output Output level Y S (SYNC - 100% white): 1.0 Vp-p (75Ω load) C (Burst): 286 (300) mVp-p (75Ω load) Output impedance 75Ω RGB Outputs 　 RGB Output level  Output impedance  0.7 Vp-p (75Ω) 75Ω  HD? VD Output level  Output impedance  Logic  Approx. 4 Vp-p (open end) 75Ω Negative logic Sync Output　 Frequency (signal format) H/V composite and vertical frequencies Output level Approx. 1 Vp-p (open end) Output impedance 75Ω Subcarrier Output　 Frequency (CG-951) 3.579545 MHz (100 Hz) (CG-952) 4.433619 MHz (100 Hz) Output level Approx. 1 Vp-p (open end) Output impedance 75Ω Sync Signals　 H scanning frequency (CG-951) 15.734 kHz (CG-952) 15.625 kHz V scanning frequency (CG-951) 59.94 Hz (CG-952) 50.00 Hz Color Burst　 Min. 8 cycles at the back porch of H sync signal (ON/OFF switchable). Remote Control (Optional)　 Input connector 24-pin Amphenol Input level TTL level (H: 2.5 V or more or open. L: 0.8 V or less.) Panel/remote switching 1 bit (negative logic) Pattern and other control 7 bits RF Output (Optional)　 Output connector (CG-951) F connector (CG-952) PAL connector Modulation system Negative modulation Output level 60dBμ or more Output impedance 75Ω Video frequency　 CH A B CG-951 JAPAN CH CH1 91.25MHz CH3 97.25MHz USA CH CH3 61.25MHz CH4 67.25MHz CG-952 EUROPE CH CH2 48.25MHz CH3 55.25MHz ITALY CH CHA 53.75MHz CHB 62.25MHz AUSTRALIA CH CH1 57.25MHz CH2 64.25MHz NEW ZEALAND CH CH2 55.25MHz CH3 62.25MHz U.K. CH CH71 495.25MHz CH77 543.25MHz Temperature/humidity for operation 0 to 40°C? RH 85% max. Temperature/humidity for　characteristics in spec. 10 to 35°C? RH 85% max. Power source 100? 120? 220? 230V AC ±10% (max. 250V) 50/60Hz Power consumption Approx. 28W Case dimensions 212 (W)×133 (H)×272 (D) mm Maximum dimensions 212 (W) ×156 (H)×298 (D) mm Weight Approx. 5.3kg Accessories Instruction manual (1)?  power cord (1) Video output signal level CG-951 Allowable value 75% White Yellow Cyan Green Magenta Red Blue -I 100%White Q Burst Black Synced signal level Luminance component (mVp-p) ±4% 536 477 375 316 220 161 59 0 714 0 0 0 286 Chroma level (mVp-p) ±5% - 480 681 636 636 681 480 286 - 286 286 - - Chroma phase (deg) ±5° - 167 283 241 61 103 347 303 - 33 180 - - CG-952 Allowable value 75% White Yellow Cyan Green Magenta Red Blue U 100%White V Burst Black Synced signal level Luminance component (mVp-p) ±4% 525 465 368 308 217 157 60 0 700 0 0 0 300 Chroma level (mVp-p) ±5% - 470 664 620 620 664 470 300 - 300 300 - - Chroma phase (deg)±5° V - 167 283 241 61 103 347 0 - 90 135 - - -V - 193 77 119 299 257 13 0 - 270 225 - -
