CSG-101

CSG-101 :

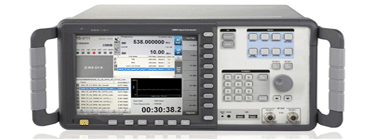

CSG-101 is Ultimate integrated RF Signal Generating system. It is built up based on China Mobile Multimedia broadcasting standard, So Called CMMB, It is fully compliant with CMMB standard (GY/T 220.1-2006). It has OFDM modulator and RF up converter fully covers from 50MHz to 1GHz. The output level can be controlled from 110dBm to 10dBm with 0.1dB step and remote control functions enable you to get comfortable manipulating for the mass manufacturing factories. CSG-101 CMMB Signal Generator has high-stability RF up-converter and CMMB modulator.It is highly optimized and cost effective solution for designers, R&Ds , manufacturers even module maker.

CMMB Standards completely supports All-in-one system : TS Player + Modulator + RF up convertor High-stable & Precise RF output Excellent modulation parameter setting Real-time A/V Decoding Preview Precise Power Resolution : 0.1dB step Automatic TS Bitrate Setting Internal TS Generation Touch Screen 1024X768 pixels C/N Generation(AWGN) - Optional 2CH Multi TS playing - Optional TS Analyzer

CMMB Modualation Features Fllow the standard: GY/T 220. 1-2006 Byte Interleave mode : mode1, mode2, mode3 RS coding : (240,240), (240,224), (240,192), (240,176) LDPC Bitrate : 1/2, 3/4 Constellation : BPSK, QPSK, 16QAM Signal bandwidth : 8MHz Rate 1/2 and 3/4 LDPC encoder IFFT:4096 points GI and TXID support Transmitter ID: Configurable
